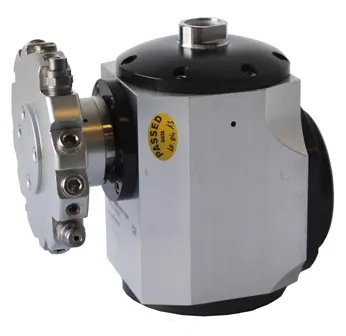

FV025 8-200 bar/8-200 liter 90°C aquamotor 2 nozzles aluminium
This powerful water-driven tank cleaning head from the FV-series is suitable for cleaning waste containers, hoppers, road tanker compartments and silos.
Article number 205121000
View all specifications
Features
- 200 L/min
- 200 bar
- Aluminium
-
More than 8000 m2 of warehouse available
-
More than 50 years of experience
-
Contact with cleaning specialists
-
We deliver top quality at the lowest price
Product information

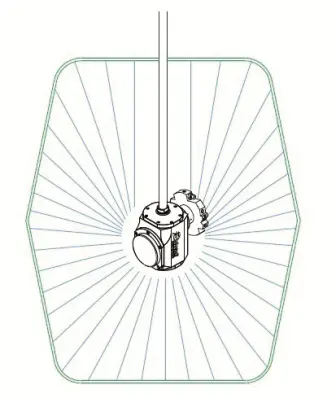

This tank cleaning head is a self-rotating head with contactless oil brake. Just like all the other heads in the FV series, this head does not have a cross-spray pattern but a vertical spray pattern. The nozzle displacement is 15 degrees per revolution, which means it goes through a complete cycle after 24 revolutions. The spray distance per revolution at 1 metre away is 26 centimetres. The rotation speed depends on the operating pressure, water flow rate, nozzle position, oil viscosity, the brake material and the type of oil used.Specifications
| Complete cleaning cycle | 10-30 sec |
| Connection | "1/2""" |
| Connection 1 (in) | 1/2" internal thread BSP |
| Connection 2 (out) | 1/4" binnendraad NPT |
| Drive | Water |
| Flow rate | 200 L/min |
| Material | Aluminium |
| Max temperature in | 90 °C |
| Maximum pressure | 200 bar |
| Sales unit | st |
| Tank opening | 170 mm |
| Temperature | 90 °C |
| Weight | 5.33 kg |
